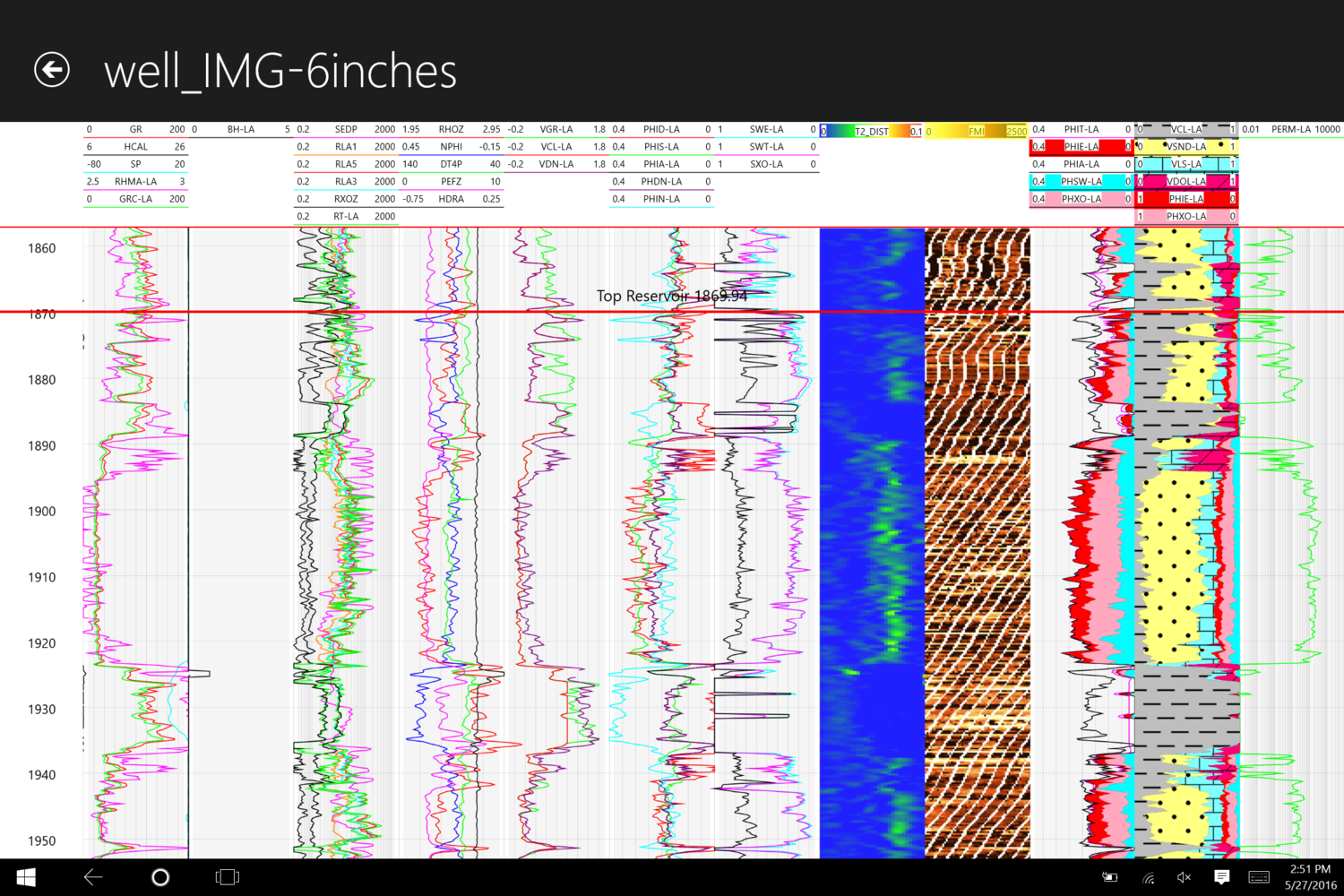

This bundle is designed for people with the need to plot full waveform images and load DLIS files. It includes Advanced Log Analysis as well.

This is the advanced bundle and includes:

• Basic Display
• Deviation Plot
• Export functionality
• Advanced Display
• DLIS
• Advanced Log Analysis

The Bundle includes cross section and map view of wells and the new tadpole display option. LAS files and zone tops can be imported from multiple wells

It includes

• Insertion of special minerals
• Nphi matrix reference can be set by zone (i.e Limestone, Sandstone and Dolomite)
• DPHI can be used to back calculate the density
• Inclusion of deterministic mineral model (DMM), silty shaley sand (SSS) and dual or two water model (TWA):
  • These models can be selected and used by zone
  • Basic model is similar to DMM but when the PEF is bad or not available it uses a simple matrix lithology model.
• Variable M and N entry
• NMR T2 processing from T2 waveform
• Geomechanical model computing moduli and other additional parameters
• Shale gas model computing TOC and Shale Gas volume using a variety of methodologies
• Coal Bed Methane (CBM) computation
• Hydrocarbon Volume Report
• Undo/Redo
• LAS 3 import and export

The module adds to the BASIC log analysis module a Deterministic Mineral Model, a Silty Shaley Sand Model and a Dual water model. Any combination of modules can be used in a well by specifying the model required in each zone.
